Products / FT Truss / FT24

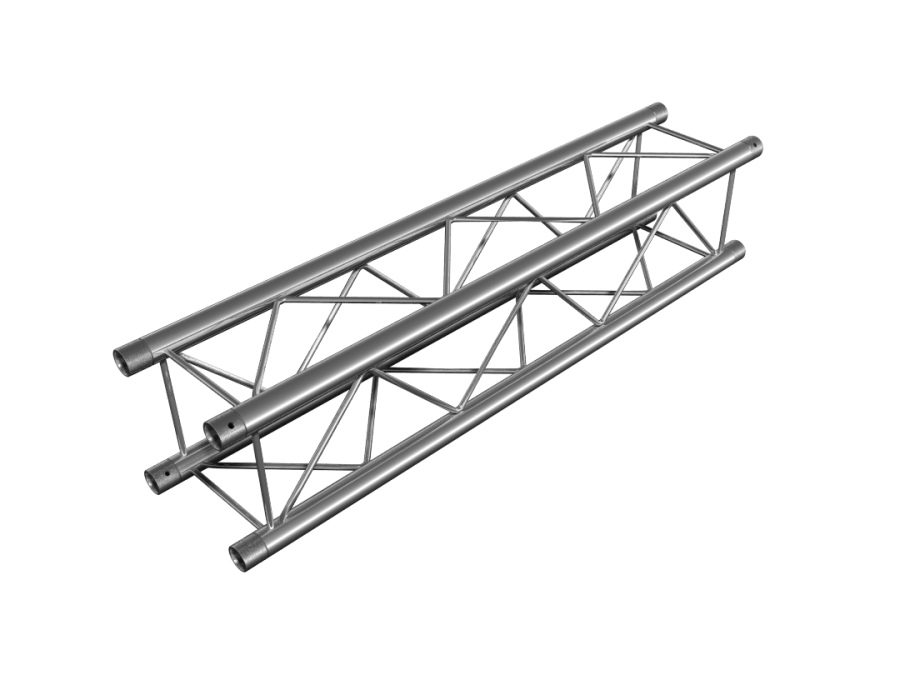

FT24

Aluminium 4-point trusses with Quicklock connection specifically designed from smaller tubes and braces with wide application in various small to middle size stands and displays. Larger designs are also possible with respect to the loading capacity of the trusses. Main characteristics of the products are smaller size while maintaining good loading rates and lower weight in general. This type of square trusses work perfect in many configurations both inside and outside.


Key features and benefits:

  • 220 mm (8.66 in) square truss
  • Certified 35 x 2 mm (1.4 x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 10 m / 32.81 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8005, 8006, 8024, 8025, 8027, 8028, 8029 clamps
  • Quicklock connection system for fast assembly
  • Powder coat colour finish available on request
Specifications

TUBES

35 x 2 mm (1.4 x 0.08 in)

BRACES

8 mm (0.3 in)

ALLOY

EN AW-6060 T66
FT Truss TÜV Süd CEPowder coating available

Contact us today for more information or to receive a price quote.
