Products / FT Truss / TC55

TC55

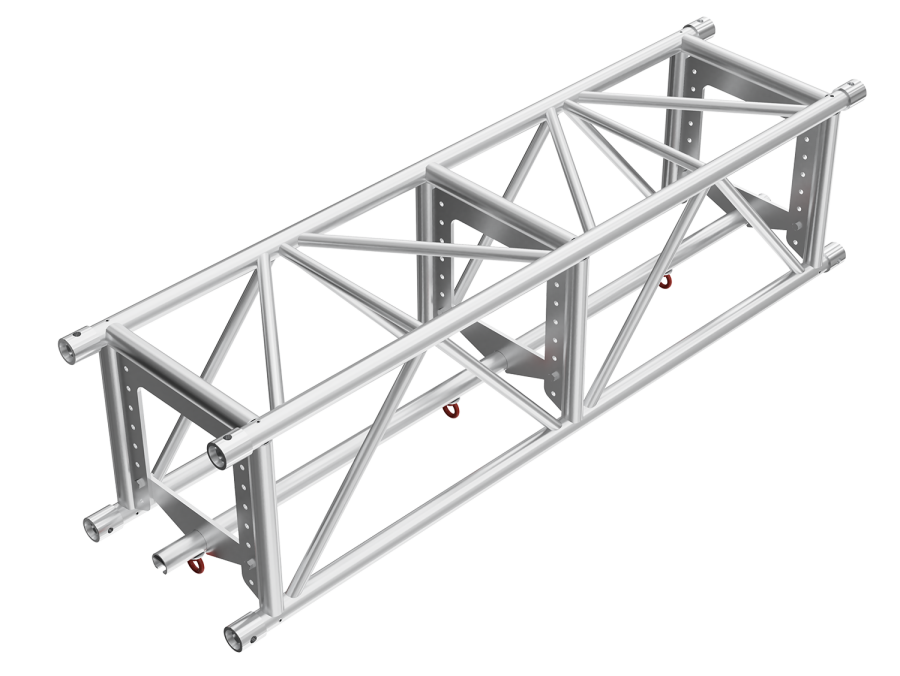

TC55 is a heavy-duty aluminium box truss developed for structures where strength, stiffness and rigging flexibility are critical. A key feature of TC55 is its integrated suspension system based on a C-profile tube. The C-profile works together with thick connection plates to increase torsional stiffness and reduce local stress in high-load areas.



The suspension rail offers positioning in 50 mm (1.97 in) steps, providing multiple rigging points along the truss. With a series of pre-defined connection holes, users can precisely position motors, pick points and accessories according to structural and production requirements. This flexibility significantly speeds up rigging while maintaining safe and predictable load transfer.



Key Features and Benefits



  • 520 mm (20.47 in) heavy-duty box truss construction

  • C-profile suspension system for efficient load transfer

  • Suspension positioning in 50 mm (1.97 in) increments

  • Multiple integrated connection holes for flexible rigging layouts

  • High stiffness suitable for long spans and point loads

  • Designed for professional event and entertainment production

FT Truss TAF Static Approved CE

Contact us today for more information or to receive a price quote.

Contact us today
